ICECNC 2-Position Rear Lift Kit for Select 2006–2017 Harley-Davidson Dyna Models

Give your Dyna two fixed rear-lift choices in one kit. Choose the Performance Position for approximately 1-3/4 in of rear lift at the axle, or the Aggressive Position for approximately 2 in.
The kit raises the rear by relocating the lower rear-shock mounting points, allowing riders to retain their existing compatible twin rear shocks instead of changing to longer shocks for these two lift positions.
The result is a taller Dyna rear stance. Depending on the motorcycle and setup, the added height may also increase available ground and cornering clearance. Actual results vary by model, suspension setup, load, tires, exhaust, and other installed components.

Specification & Features:

- Brand: NICECNC
- Condition: Brand New
- Product Type: 2-Position Rear Lift Kit
- Structural Type: Lower Shock Mount Relocation Kit
- Lift Block Material: 6061 Aluminum
- Hardware Material: Steel
- Process: CNC Machined
- Finish: Black Anodized
- Lift Positions: Performance / Aggressive
- Performance Position: Approx. 1-3/4 in Rear Lift at the Axle
- Aggressive Position: Approx. 2 in Rear Lift at the Axle
- Installation Location: Lower Rear-Shock Mounting Area
- Installation Type: Bolt-On
- Drilling Required: No
- Permanent Frame Modification Required: No

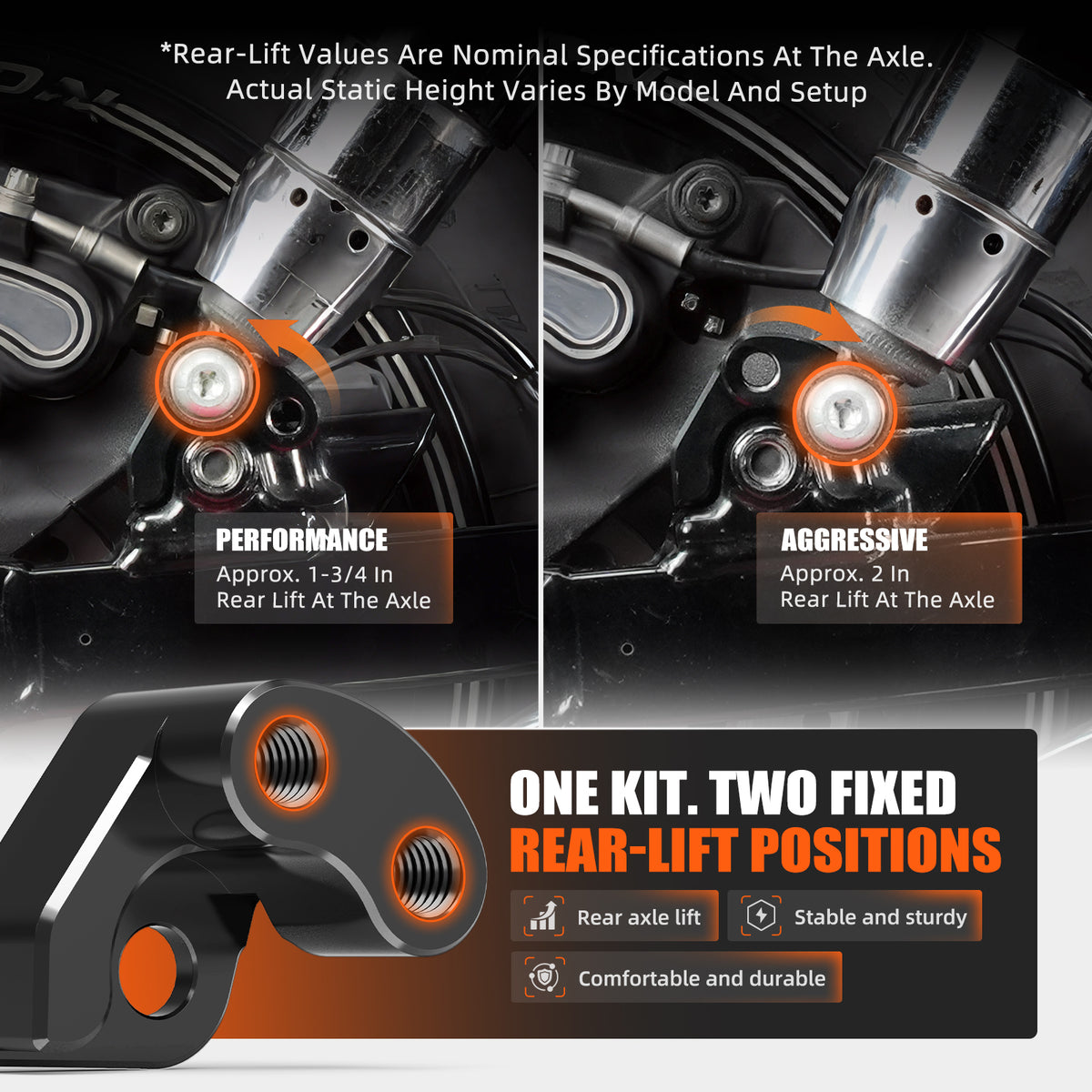

【One Kit, Two Fixed Rear-Lift Positions】
Choose between two defined rear-lift settings with the same kit:
- Performance Position: Approx. 1-3/4 in Rear Lift at the Axle
- Aggressive Position: Approx. 2 in Rear Lift at the Axle
Both figures are approximate nominal rear-lift specifications at the axle. Actual static height varies by model and setup.

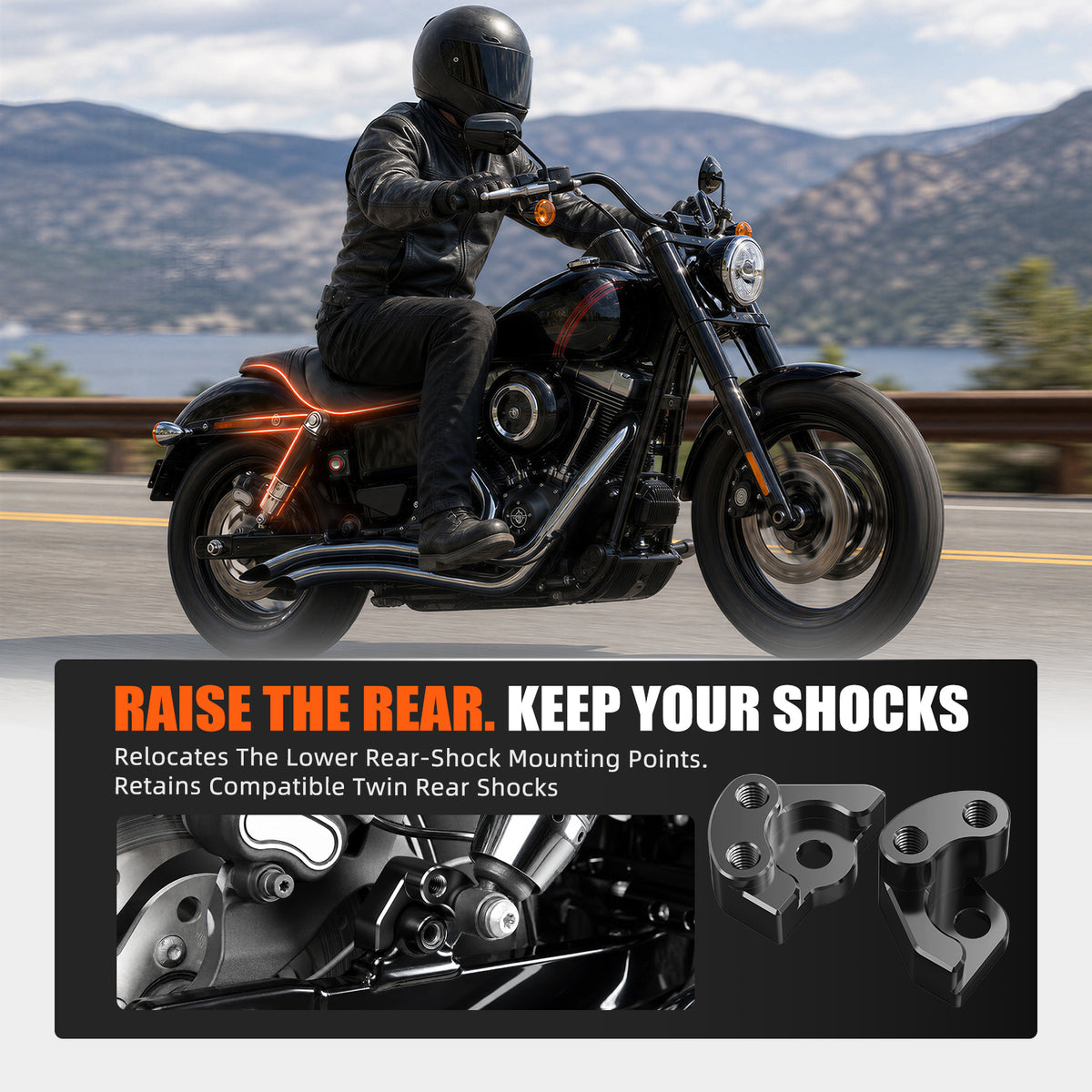

【Raise the Rear, Retain Compatible Twin Shocks】
The kit raises the rear by relocating the lower rear-shock mounting points while retaining existing compatible twin rear shocks.
It does not increase shock travel or upgrade spring rate, preload, compression damping, rebound damping, or overall suspension performance.

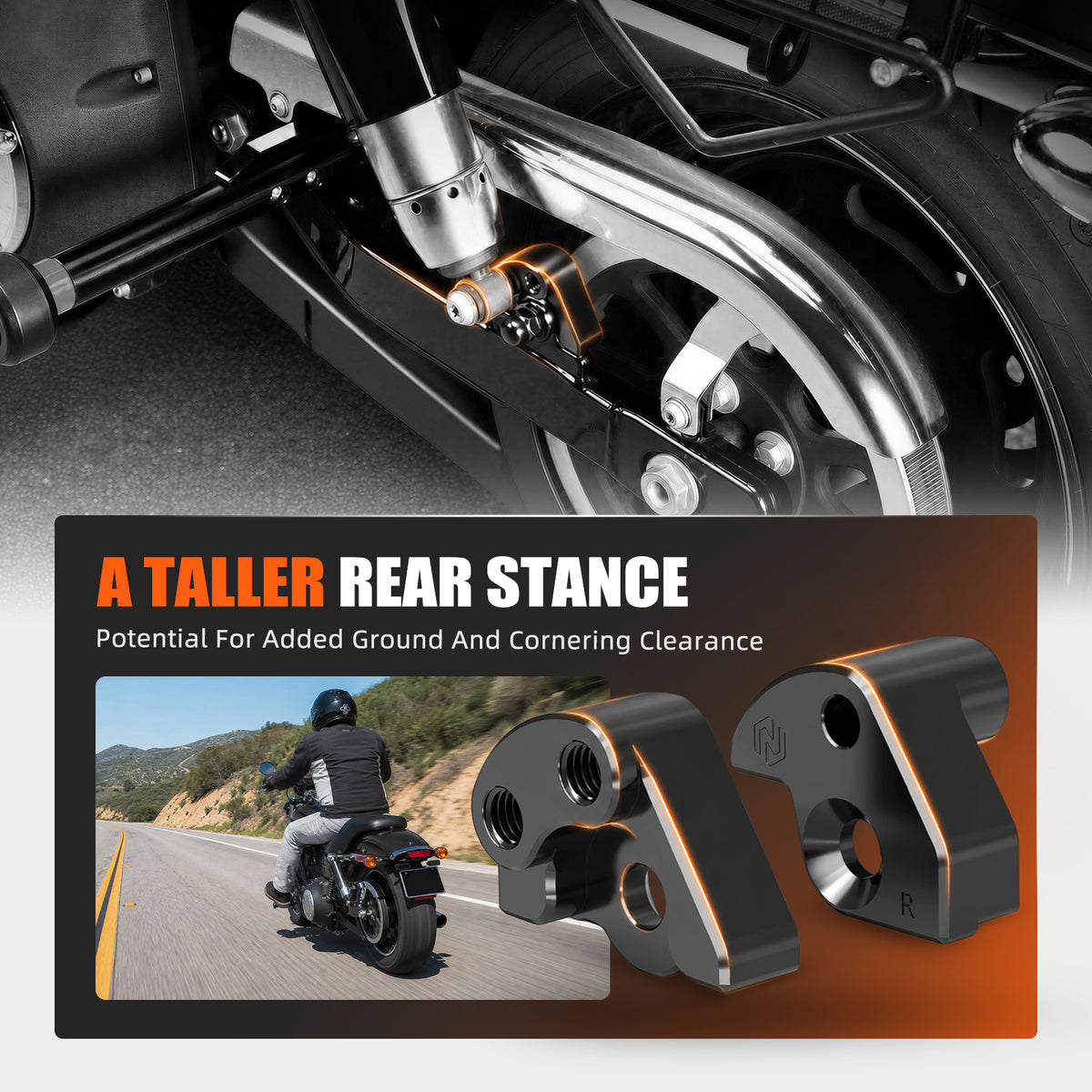

【Taller Dyna Rear Stance】
The raised rear profile gives the motorcycle a taller Dyna stance.
Depending on the motorcycle and setup, the added height may increase available ground and cornering clearance. Actual clearance varies by model, suspension setup, load, tires, exhaust, foot controls, and other installed components.

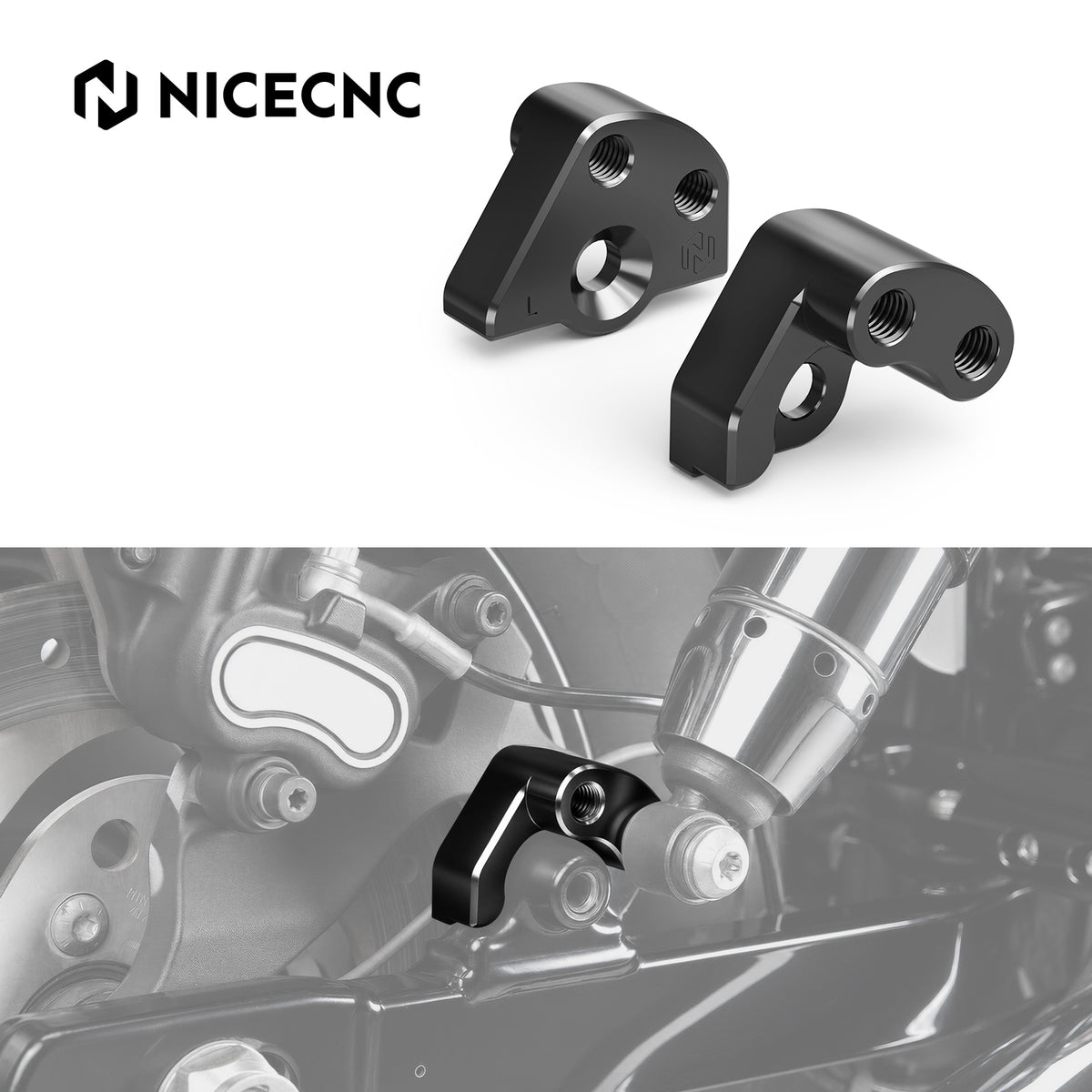

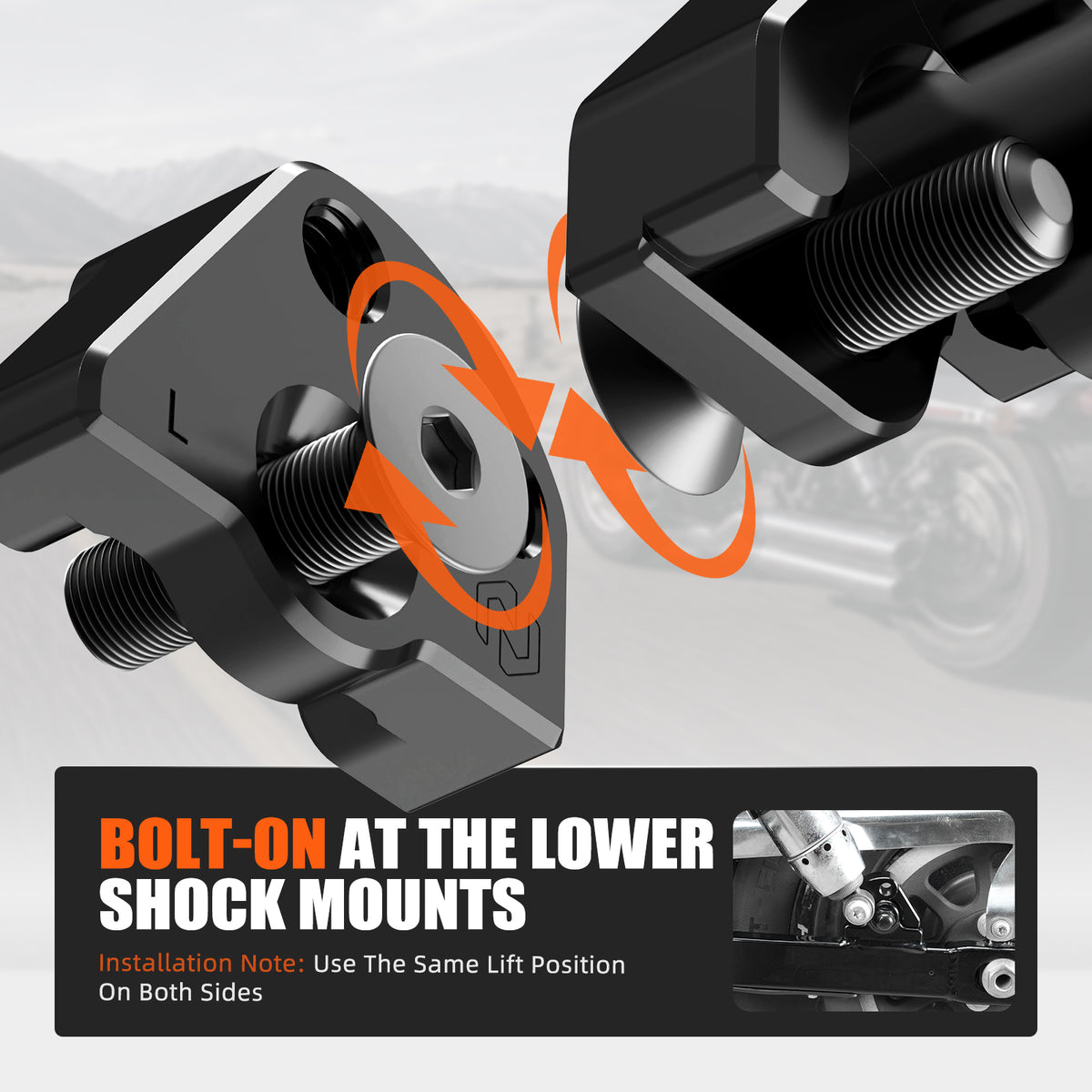

【Bolt-On at the Lower Shock Mounts】
The kit installs at the factory lower rear-shock mounting area without drilling or permanent frame modification.
Both sides must use the same selected lift position. Do not install the Performance Position on one side and the Aggressive Position on the other.

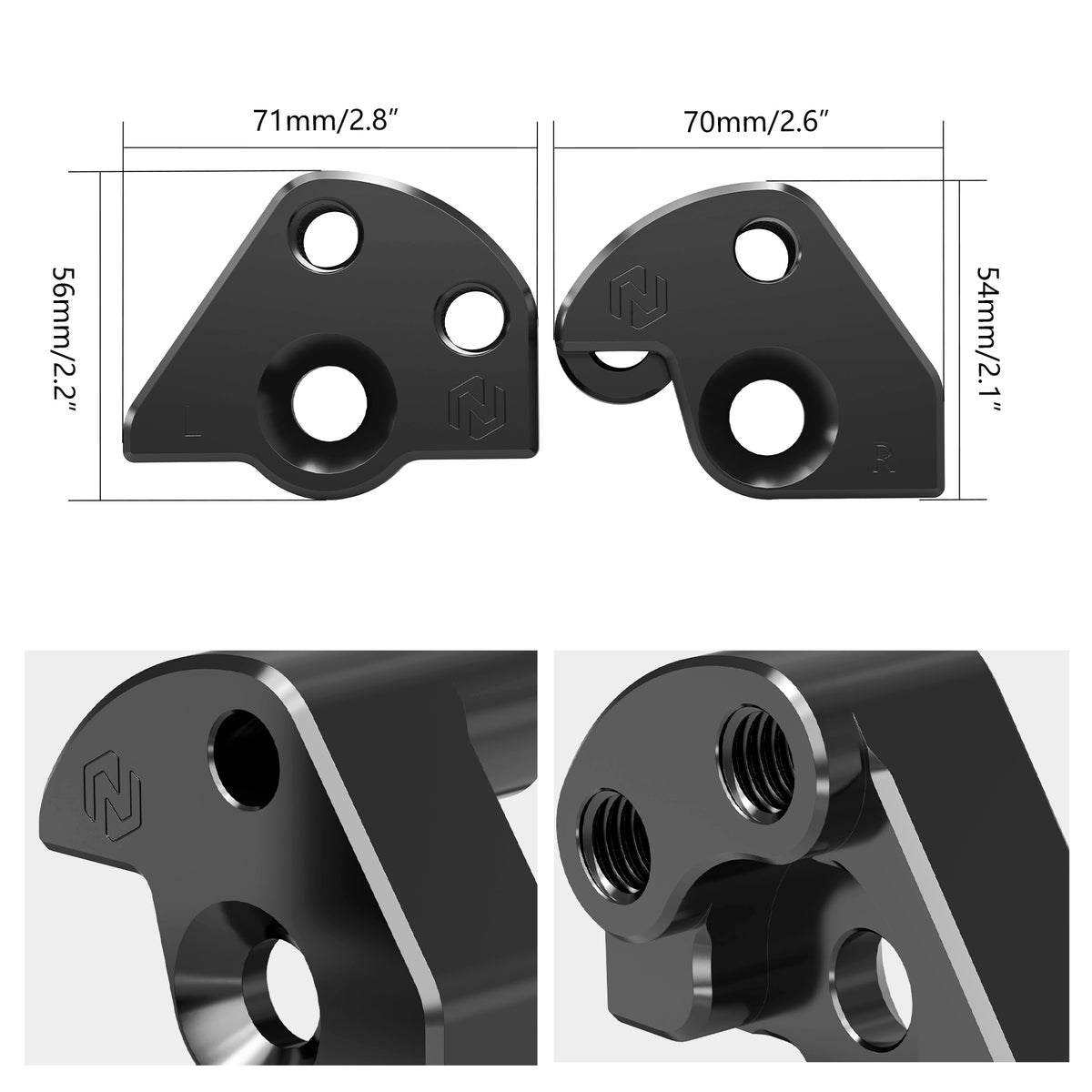

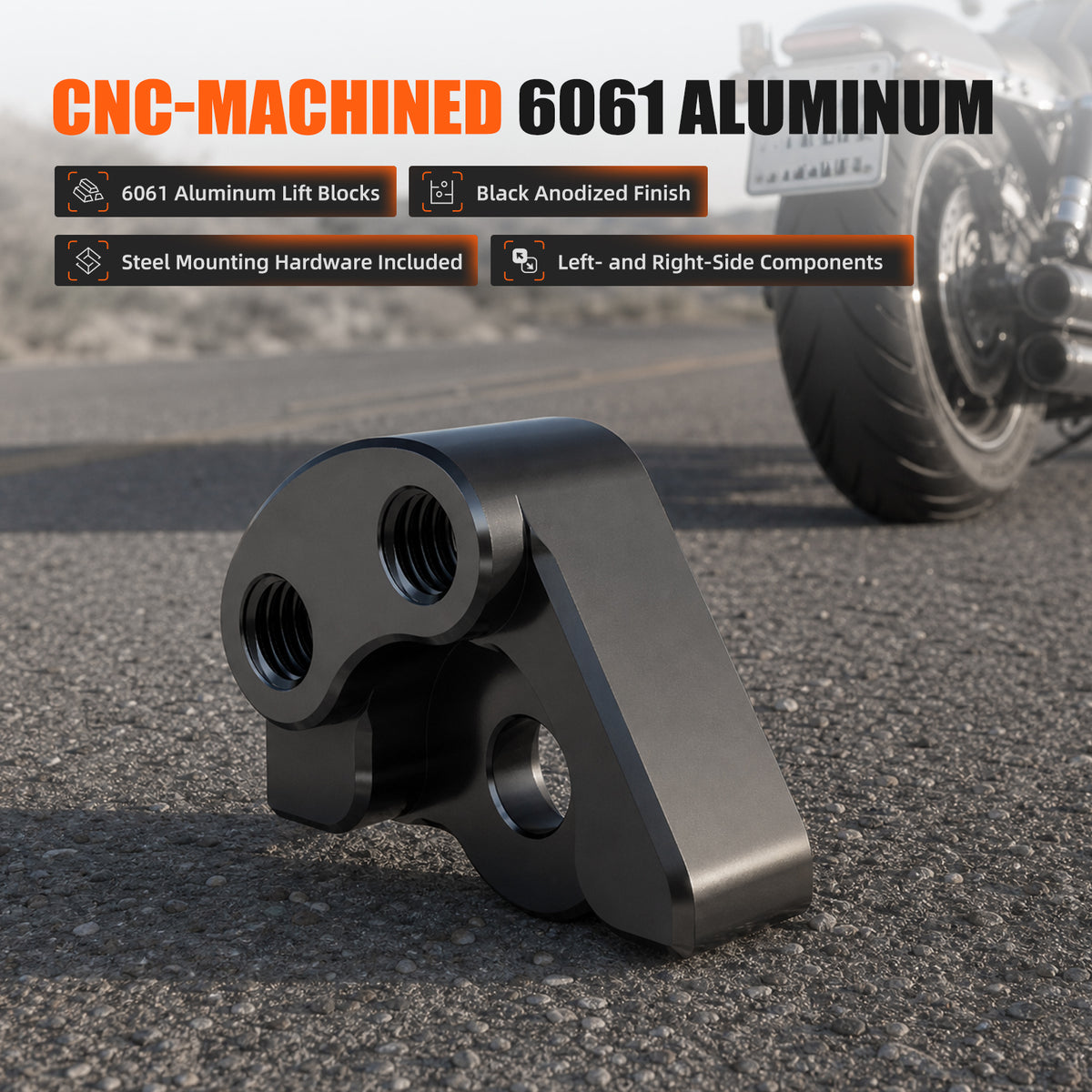

【CNC-Machined 6061 Aluminum】
The lift blocks are CNC machined from 6061 aluminum and finished in black anodizing to blend with the Dyna swingarm and rear-suspension area.

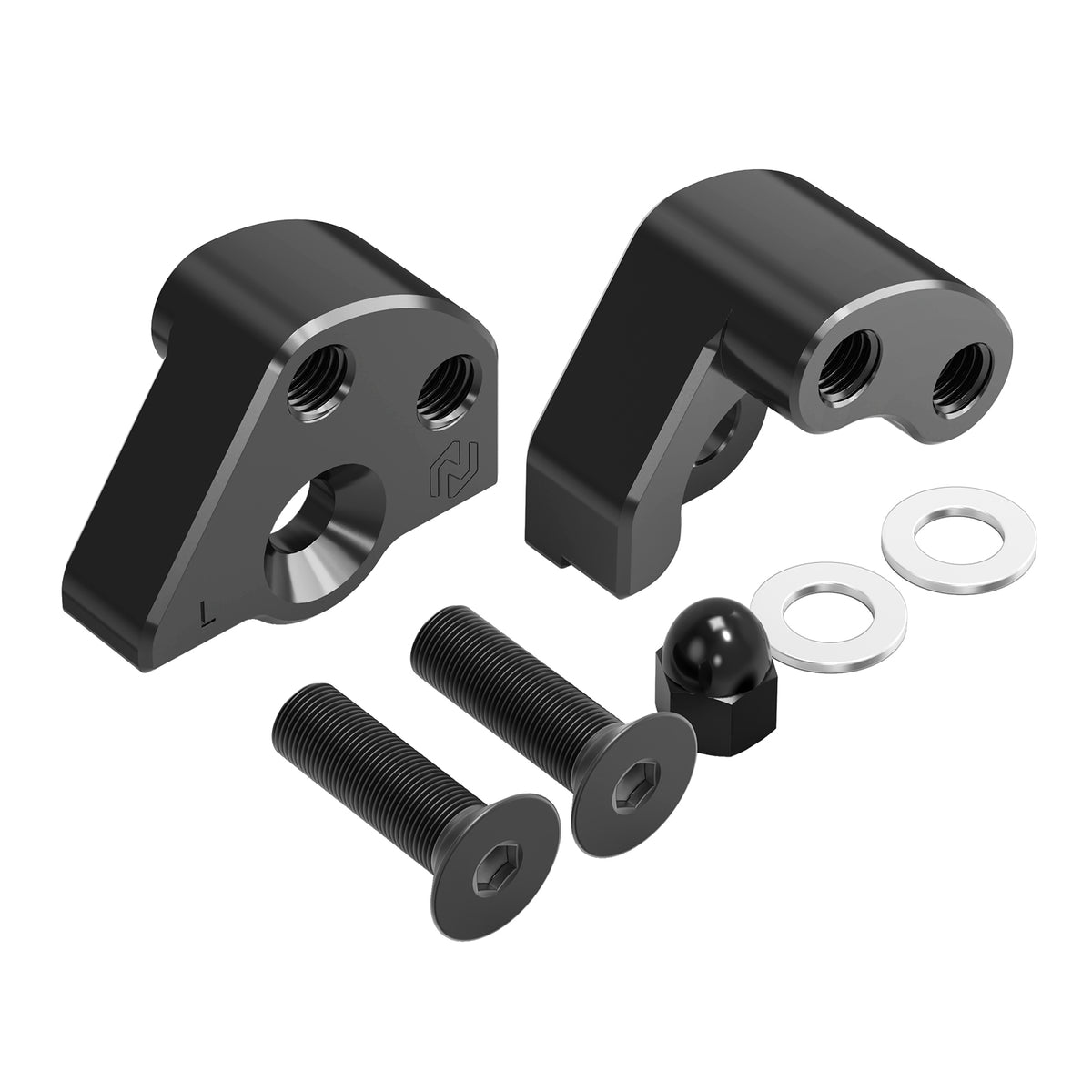

Matching left- and right-side lift blocks and steel mounting hardware are included.

---

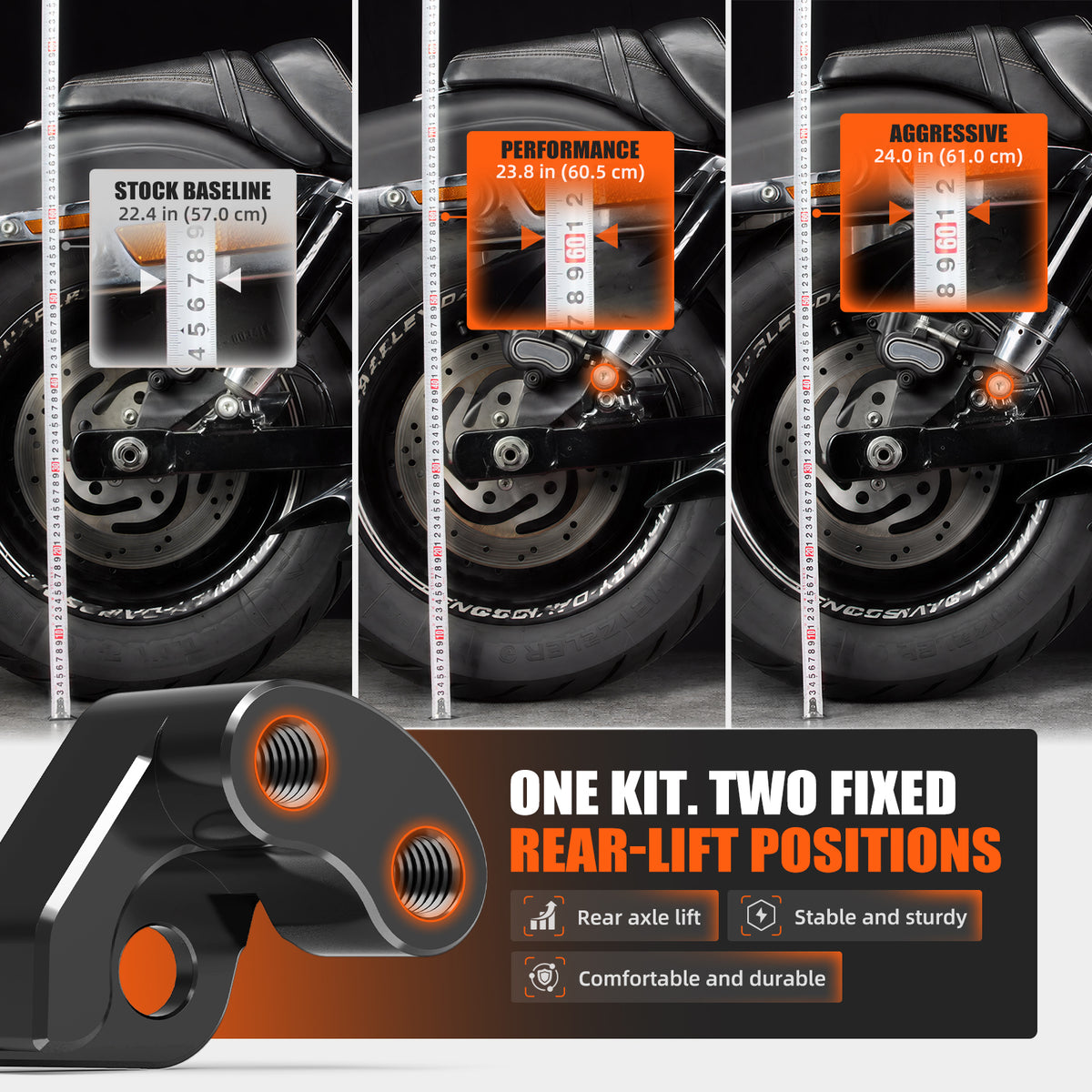

Real-World Fixed-Point Reference
Measured on our unloaded 2014 Dyna Fat Bob FXDF with its factory 12 in rear shocks, held upright on level ground.
Measurement Point: Vertically from level ground to the lower edge of the left rear fender strut cover, directly below the reflector.
- Stock Baseline: 22.4 in (57.0 cm)
- Performance: 23.8 in (60.5 cm)
- Aggressive: 24.0 in (61.0 cm)
These measurements show the height change at one fixed point on our test motorcycle. They are a separate test-bike reference from the approximate 1-3/4 in and 2 in rear-lift specifications at the axle.
Actual static height varies by Dyna model, shock length, spring rate, preload, vehicle load, tire setup, and suspension sag.

Package Included:

Fitment:

Designed for select 2006–2017 Harley-Davidson Dyna models.
Check the Vehicle Compatibility Table for the exact model, year, and trim before ordering.

Street Bob: FXDB / FXDBI / FXDBP

Important Fitment Notes
Confirm the lower rear-shock mounting configuration and available clearance around all factory and aftermarket components before ordering.
Aftermarket rear shocks, exhaust systems, saddlebag supports, belt guards, chain conversions, rear-brake components, and other rear-suspension modifications may affect installation or component clearance.

---
Installation and Safety Notes
- Install the lift blocks as a matching left- and right-side pair.
- Use the same selected lift position on both sides.
- Changing positions requires the related hardware to be removed, repositioned, and correctly secured.
- Do not attempt to rotate or change the lift position while the motorcycle is loaded.
- Follow the official NICECNC installation instructions for vehicle support, hardware orientation, torque, threadlocker, clearance checks, and post-installation inspection.
