NICECNC Clutch Slave Cylinder For KTM EXC 150 250 300 EXC-F 500 Husqvarna FC 250 GasGas MC 125

Name: NICECNC Clutch Slave Cylinder For KTM EXC 150 250 300 EXC-F 500 Husqvarna FC 250 GasGas MC 125
Brand: Nicecnc
SKU: 1242005617
Price: 69.00 USD
Availability: InStock

Unité de gestion de stock: 1242005617

Retail Price

$69.00 USD

Where to buy

Specification & Features:

This NICECNC Clutch Slave Cylinder for engines is an upgrade component designed to replace the original part on the engine.

Brand: NICECNC
Condition: 100% Brand new
Material: 6061-T6 aluminium

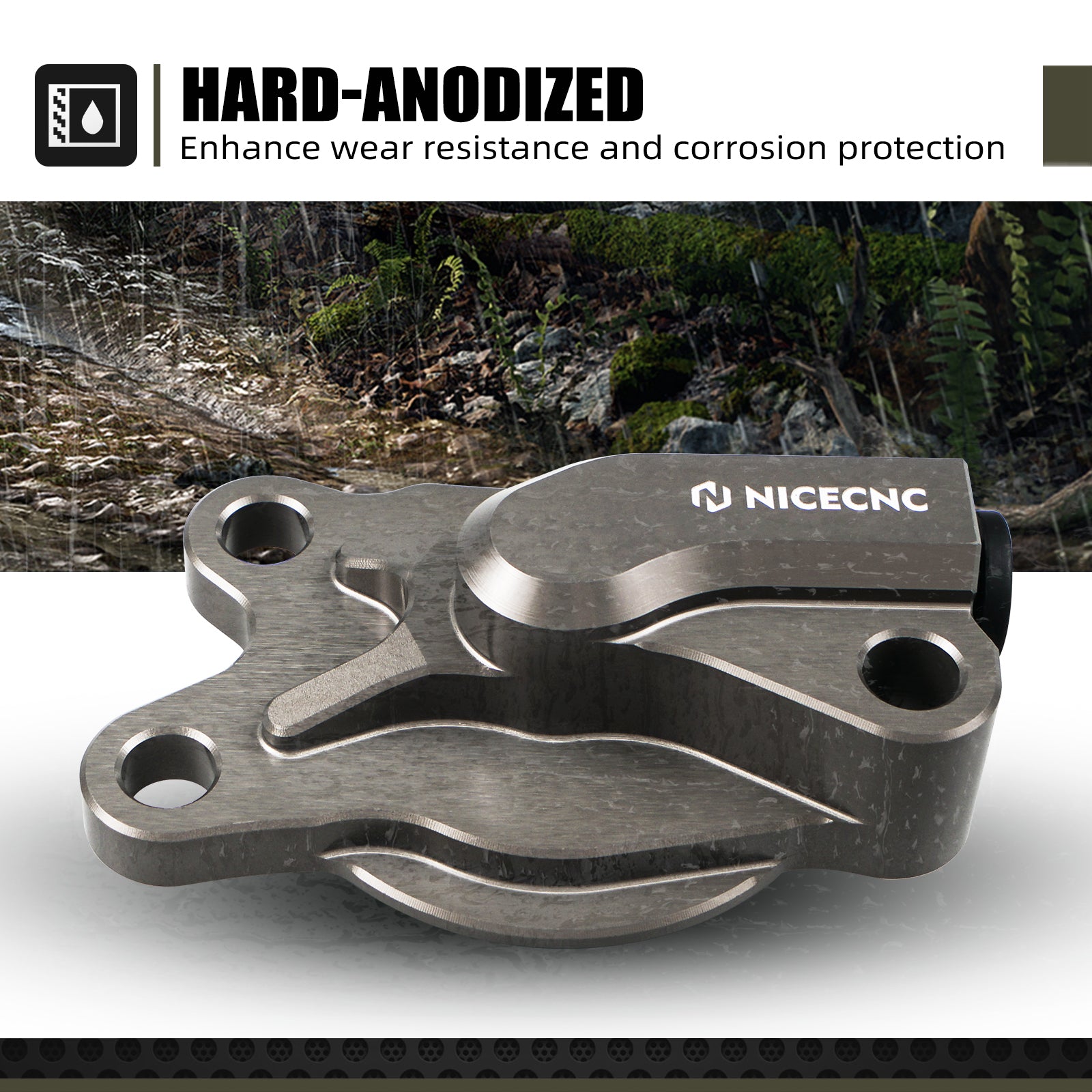

Surface: hard anodizing

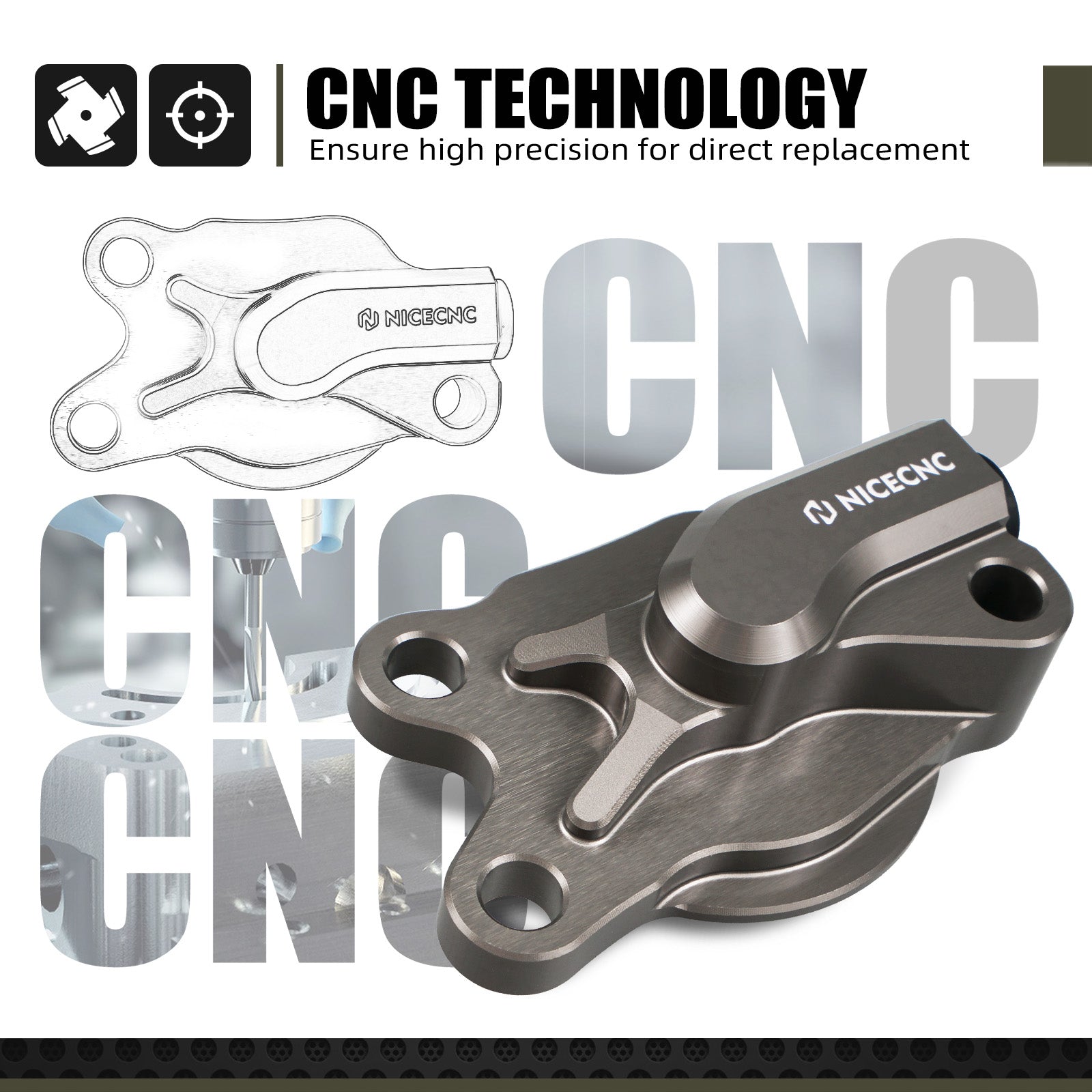

Processing: CNC-machined

The following are its main features and advantages:
【Performance Enhancements】The internal piston design and seals have been significantly improved to prevent leakage and provide smoother clutch operation, enhancing riding comfort and reliability.

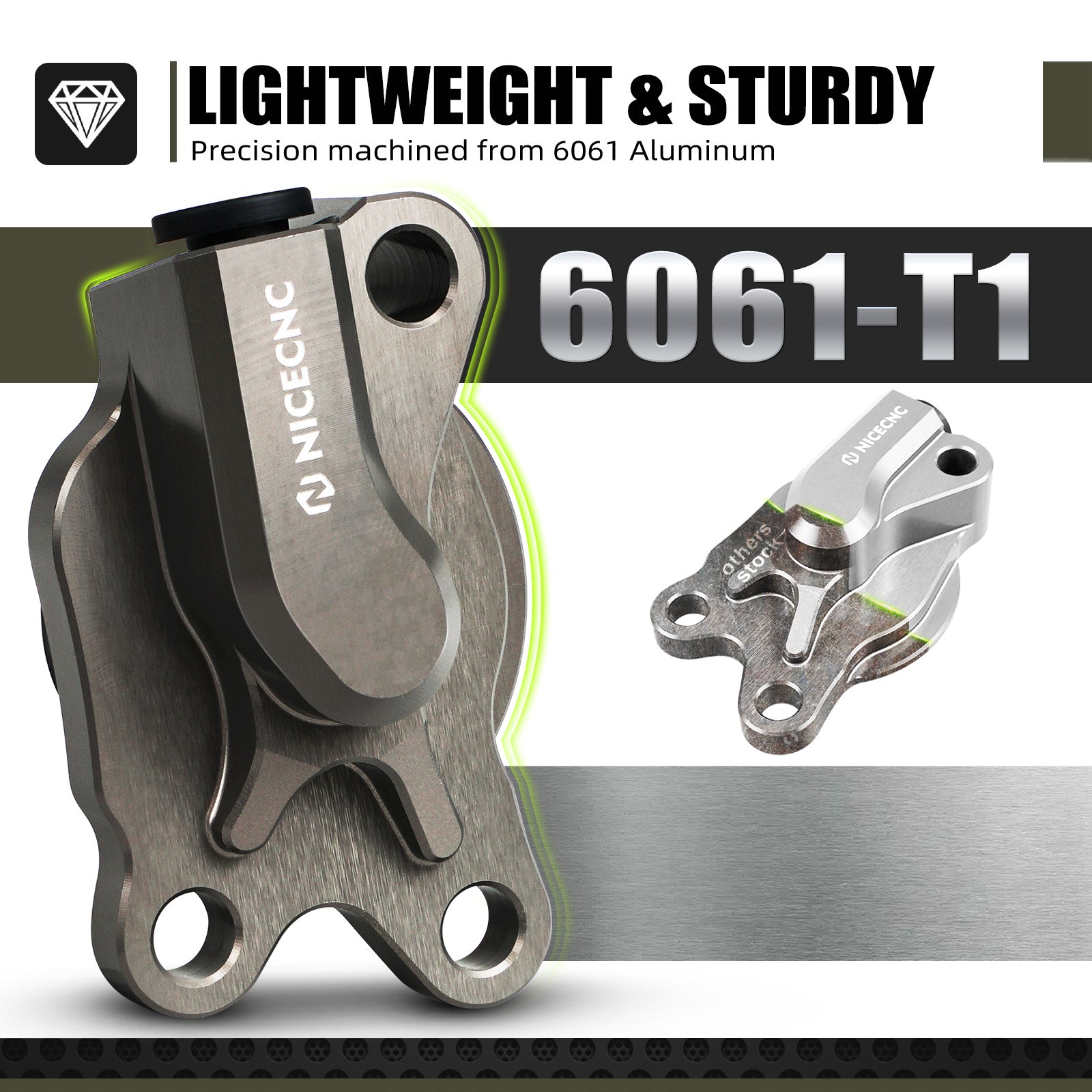

【Materials and Manufacturing】Precision-machined from 6061 series aluminum alloy, it offers lightweight yet robust characteristics. The surface is treated with hard anodizing to enhance wear resistance and corrosion protection, while also adding visual appeal to the clutch components.

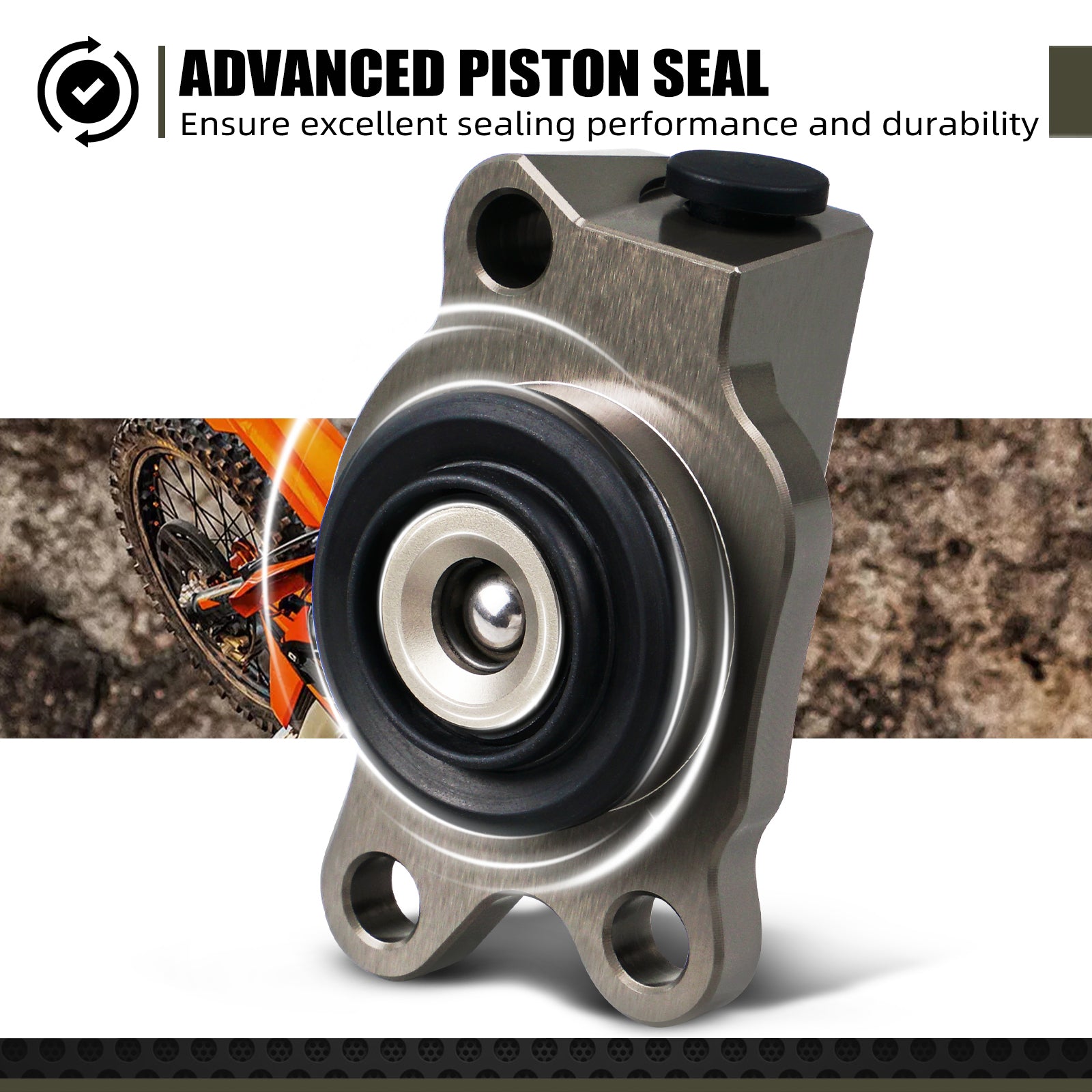

【Advanced Piston Seals】The seals are made from a special formula rubber, ensuring excellent sealing performance and durability. The special formula rubber is compatible with mineral oil and DOT 4. The internal piston design and seals have been significantly enhanced to prevent leaks and make clutch operation smoother.
【Reduced Lever Force】The design is aimed at reducing the force required to operate the clutch lever, thereby reducing riding fatigue and improving clutch feel.
【Non-repairable design】This component is not designed for user repair.
Replaces (OEM Part)
79232061044
25032061044
72132061044
A54032061044
A59032061044

Package Included:

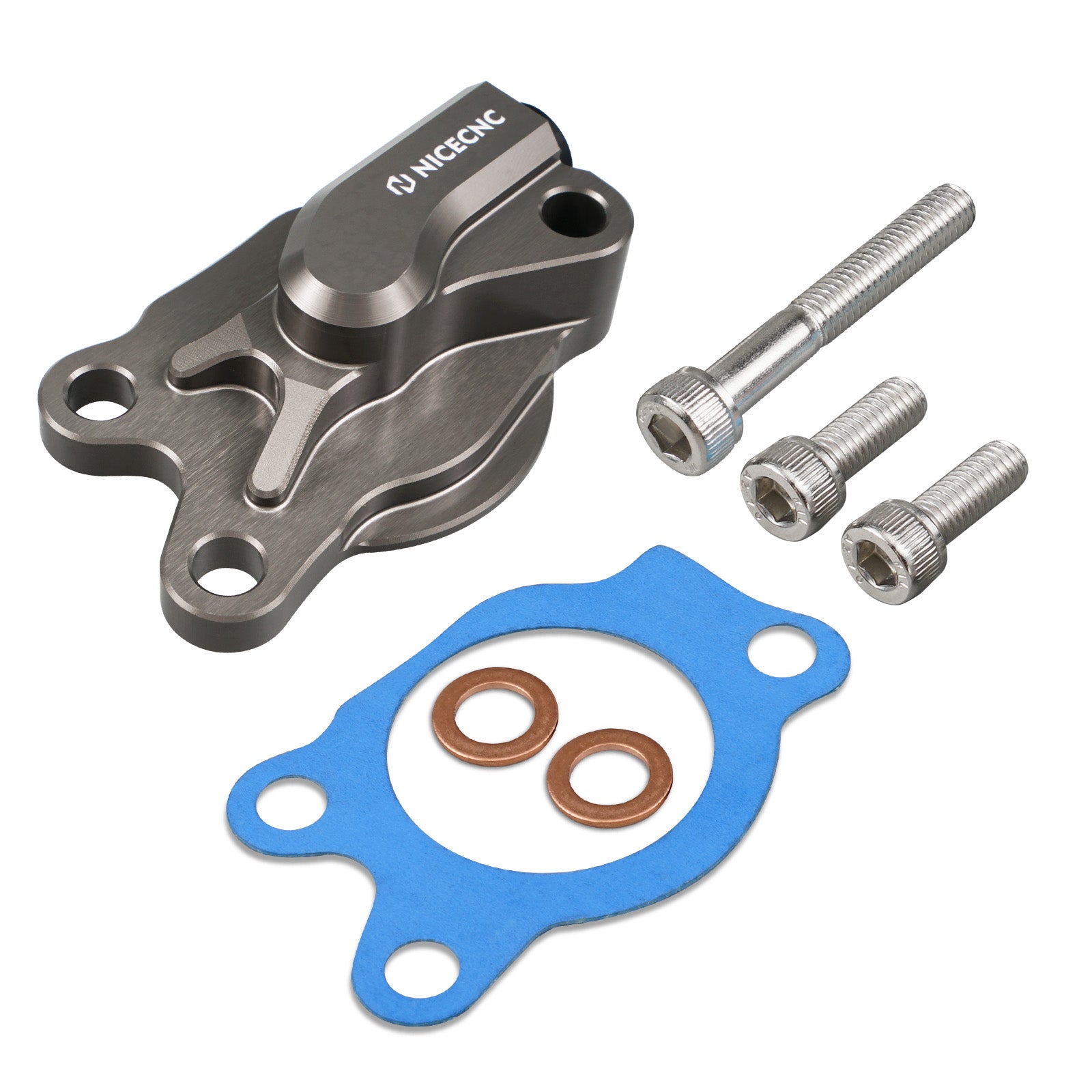

1x Clutch Slave Cylinder

NOTE:
1.Use only liquids recommended by GASGAS, KTM, or Husqvarna.
2.This product features a hard anodized surface with a naturally formed gray-brown color. Color variations may occur due to lighting conditions or display differences, which is normal.
If you have specific color requirements, please contact us before purchasing.

Fitment:

For KTM EXC 150 2023 - 2024
For KTM EXC 150 TPI 2020 - 2022
For KTM EXC 250 2017 - 2024
For KTM EXC 250 SIX DAYS 2017 - 2024
For KTM EXC 250 TPI 2018 - 2022
For KTM EXC 250 TPI SIX DAYS 2019 - 2022
For KTM EXC 300 2017 - 2024
For KTM EXC 300 HARDENDURO 2024 - 2024
For KTM EXC 300 SIX DAYS 2023 - 2024
For KTM EXC 300 TPI 2019 - 2022
For KTM EXC 300 TPI SIX DAYS 2018 - 2022
For KTM EXC-F 250 2017 - 2024
For KTM EXC-F 250 SIX DAYS 2017 - 2024
For KTM EXC-F 350 2017 - 2024
For KTM EXC-F 350 SIX DAYS 2017 - 2024
For KTM EXC-F 450 2024 - 2024
For KTM EXC-F 450 SIX DAYS 2024 - 2024
For KTM EXC-F 500 2024 - 2024
For KTM EXC-F 500 SIX DAYS 2024 - 2024
For KTM FREERIDE 250 F 2018 - 2020
For KTM SUPERMOTO 450 SMR 2023 - 2024
For KTM SX 125 2016 - 2024
For KTM SX 150 2016 - 2024
For KTM SX 250 2017 - 2024
For KTM SX 300 2023 - 2024
For KTM SX 85 2018 - 2024
For KTM SX-F 250 2016 - 2024
For KTM SX-F 350 2016 - 2024
For KTM SX-F 450 2023 - 2024
For KTM SX-F 450 FACTORY EDITION 2024 - 2024
For KTM XC 125 2021 - 2023
For KTM XC 125 2024 - 2024
For KTM XC 250 2017 - 2019
For KTM XC 250 2023 - 2024
For KTM XC 250 TPI 2020 - 2022
For KTM XC 300 2017 - 2019
For KTM XC 300 2023 - 2024
For KTM XC 300 TPI 2020 - 2022
For KTM XC-F 250 2016 - 2024
For KTM XC-F 350 2016 - 2024
For KTM XC-F 350 FACTORY EDITION 2024 - 2024
For KTM XC-F 450 2023 - 2024
For KTM XCF-W 350 2020 - 2021
For KTM XC-W 125 2017 - 2019
For KTM XC-W 150 2017 - 2019
For KTM XC-W 150 2023 - 2024
For KTM XC-W 150 TPI 2020 - 2022
For KTM XC-W 250 2017 - 2018
For KTM XC-W 250 2023 - 2024
For KTM XC-W 250 TPI 2018 - 2022
For KTM XC-W 300 2017 - 2018
For KTM XC-W 300 2023 - 2024
For KTM XC-W 300 HARDENDURO 2024 - 2024
For KTM XC-W 300 SIX DAYS 2017 - 2018
For KTM XC-W 300 TPI 2019 - 2022
For KTM XW-F 350 2024 - 2024
For KTM XW-F 500 2024 - 2024
For GasGas EC 250 2021 - 2024
For GasGas EC 250F 2021 - 2024
For GasGas EC 300 2021 - 2024
For GasGas EC 350F 2021 - 2024
For GasGas EC 450F 2024 - 2024
For GasGas EC 500F 2024 - 2024
For GasGas EX 250 2022 - 2022
For GasGas EX 250F 2021 - 2022
For GasGas EX 300 2021 - 2022
For GasGas EX 350F 2021 - 2022
For GasGas MC 125 2021 - 2024
For GasGas MC 250 2021 - 2024
For GasGas MC 250F 2021 - 2024
For GasGas MC 350F 2021 - 2024
For GasGas MC 450F 2024 - 2024
For GasGas MC 85 2021 - 2024
For Husqvarna FC 250 2016 - 2024
For Husqvarna FC 350 2016 - 2024
For Husqvarna FC 450 2023 - 2024
For Husqvarna FC 450 Rockstar Edition 2024 - 2024
For Husqvarna FE 250 2017 - 2024
For Husqvarna FE 250 Heritage 2023 - 2024
For Husqvarna FE 350 2017 - 2024
For Husqvarna FE 350 Heritage 2023 - 2024
For Husqvarna FE 350 Pro 2024 - 2024
For Husqvarna FE 350s 2020 - 2021
For Husqvarna FE 450 2024 - 2024
For Husqvarna FE 501 2024 - 2024
For Husqvarna FE 501w 2024 - 2024
For Husqvarna FS 450 2023 - 2024
For Husqvarna FX 350 2017 - 2021
For Husqvarna TC 125 2016 - 2024
For Husqvarna TC 125 Heritage 2023 - 2024
For Husqvarna TC 250 2017 - 2024
For Husqvarna TC 250 Heritage 2023 - 2024
For Husqvarna TC 85 2018 - 2024
For Husqvarna TE 150 2017 - 2024
For Husqvarna TE 150 Heritage 2023 - 2024
For Husqvarna TE 150i 2020 - 2022
For Husqvarna TE 250 2017 - 2024
For Husqvarna TE 250 Heritage 2023 - 2024
For Husqvarna TE 250i 2018 - 2022
For Husqvarna TE 300 2017 - 2024
For Husqvarna TE 300 Heritage 2023 - 2024
For Husqvarna TE 300 Pro 2024 - 2024
For Husqvarna TE 300i 2018 - 2022
For Husqvarna TX 125 2017 - 2019
For Husqvarna TX 300 2017 - 2019
For Husqvarna TX 300i 2020 - 2021

Installation Instructions
Preparation: Before installing your newly purchased product, please read and understand these instructions thoroughly and ensure you have the following items on hand, including a suitable collection container and some approved clutch fluid used according to the manufacturer's instructions. Some models use mineral oil, while others use DOT 4. Although the NICECNC slave cylinder is compatible with either type of fluid, the master cylinder must use the fluid recommended by Brembo or Magura (depending on the type of fluid your model is equipped with).

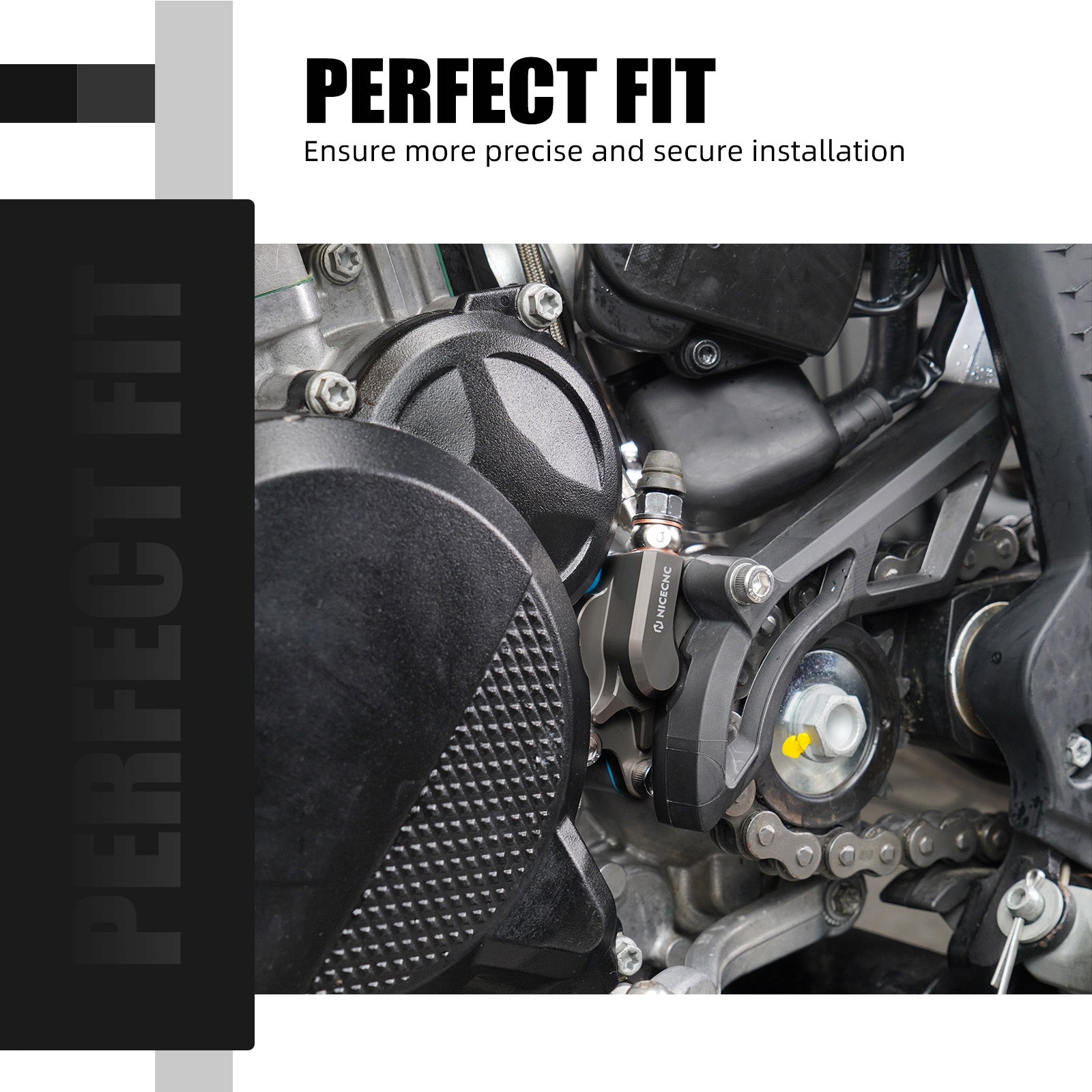

Installing the slave cylinder: Remove any necessary fairings or covers to ensure the entire area is easily accessible. The motorcycle should be kept upright or slightly tilted to help air bubbles escape. When loosening (but not removing) the hydraulic hose, wrap the existing clutch body with a cloth to minimize potential fluid leakage. Ensure the collection container is in place to catch any fluid that may leak out when loosening the hose. Remove the existing cylinder from the engine, preferably by wrapping the clutch lines and original cylinder together with a cloth. The NICECNC clutch slave cylinder is pre-assembled; ensure that new gaskets are installed before securing the unit to the engine. You will need to retain and use the original bolts, as housing and attachment conditions vary.
Warning: Before inserting the slave cylinder into the motorcycle, lightly lubricate the O-ring (1) with engine/transmission oil. It is very important not to force this seal, as any tears or damage may cause the device to malfunction. You can now remove the pipes and exhaust screws from the original cylinder and connect them to the new cylinder. Perform this operation safely and promptly to minimize subsequent exhaust time. When reinstalling the hydraulic hose to the new slave cylinder, ensure that all components are exceptionally clean. Use the provided seal ring only if the original fluid line used a seal ring.
Install the NICECNC slave cylinder, ensuring all original components are reinstalled. Note that the master cylinder capacity for Husaberg/Husqvarna/KTM/GasGas models is very small, so oil levels must be carefully monitored. Some models require a small chain guard to be installed before the hydraulic hose for proper assembly. Bleed the system through the original bleed valve at the top of the slave cylinder, ensuring a pipe is connected to a collection container. Pull the clutch lever approximately six times (holding the lever during the final stroke). Release the valve to relieve fluid pressure, then re-tighten and release the lever. Repeat this step until the clutch no longer feels “spongy.” Ensure the clutch master reservoir fluid level does not drop too low to prevent air ingestion.
